TLM8
Key Features
- 8 independent load cell channels for individual monitoring and advanced weighing performance
- Advanced digital weighing technology compatible with analog load cells
- Digital load cell equalization for improved system accuracy
- Automatic diagnostics for continuous system monitoring and troubleshooting
- Integrated inclinometer function for tilt compensation and enhanced weighing accuracy-
- Backlit graphic LCD display (128 × 64 pixels, 60 × 32 mm viewing area) for clear operation and monitoring
- Four-key keypad for system calibration and configuration
- Dedicated TEST key for instant access to diagnostic functions
- Compact enclosure measuring 148 × 92 × 60 mm for industrial installations
Specifications
- Display: Backlit graphic LCD, 128 × 64 pixels with a 60 × 32 mm viewing area
- Load Cell Channels: 8 independent inputs with total weight display
- Load Cell Capacity: Supports up to 16 load cells (350 Ω, 4- or 6-wire)
- Load Cell Excitation: 5 VDC / 240 mA
- A/D Converter: 8-channel, 24-bit with 16 million internal counts and 4.8 kHz conversion rate
- Analog Output: 16-bit; 0/4–20 mA and 0–5/10 V
- Communication: RS485 with Modbus RTU and Laumas ASCII protocols
- Digital Inputs/Outputs: 3 opto-isolated digital inputs and 5 programmable relay outputs
- Display Range: ±999,999
- Calibration: Four-key keypad with dedicated TEST key for diagnostics
- Digital Functions: Digital equalization, automatic diagnostics, load distribution analysis, and inclinometer support
- Mounting: Omega/DIN rail or junction box
- Dimensions: 148 × 92 × 60 mm
- Configuration: Compatible with free Instrument Manager PC software
- Protection: Removable screw terminal blocks; optional hygienic 3-A SSI approved version available
- Approvals: OIML R76:2006 Class III (10,000 divisions, 0.2 μV/VSI); optional Alibi memory available

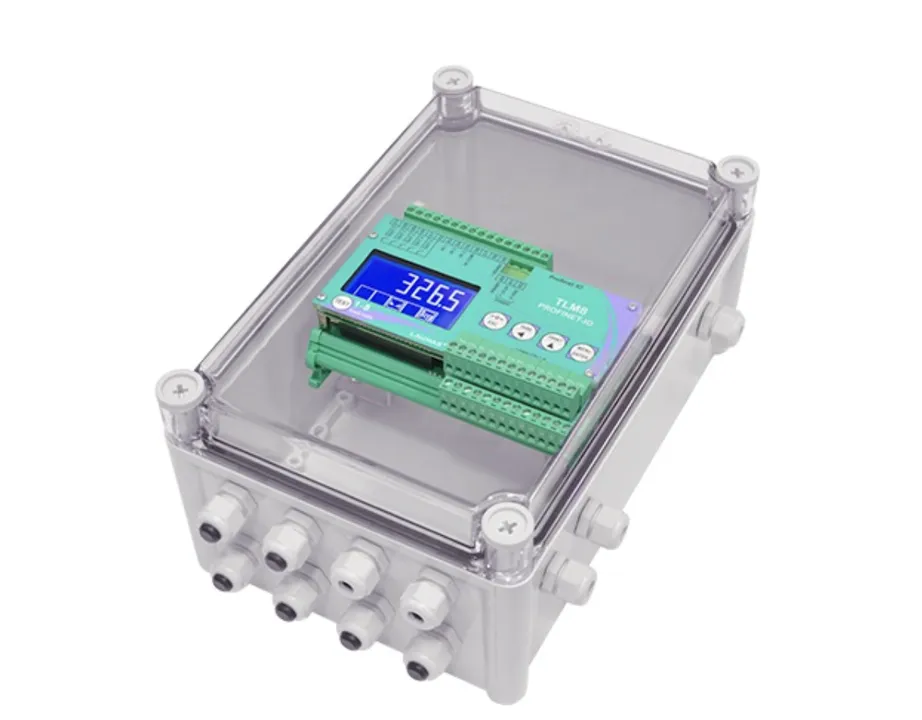

The TLM8 Weight Transmitter is a compact, DIN rail-mounted weighing controller that delivers the performance of an advanced digital weighing system while using analog load cells. Featuring eight independent load cell channels, a backlit graphic LCD display, and a dedicated TEST key for instant diagnostics, it provides accurate monitoring, easy calibration, and simplified troubleshooting. Removable screw terminals and free Instrument Manager software make installation and configuration fast and efficient for industrial weighing applications.
