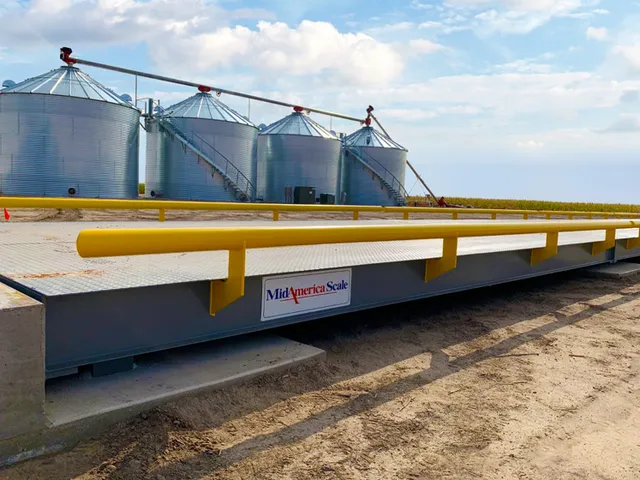

BTek Truck Scale
These scales are also available in a digital load cell model.
NTEP COC: 03-096A3 Type: Above ground flat top Scale Capacity: 200,000 lb Concentrated Load Capacity: 70,000 lb Scale Height: 16” Scale Dimension: 69’ 10-1/2” x 10’ 10-1/2” Weighbridge Deck: 1/4” tread plate decking Steel Preparation: Commercial blast cleaning SSPC-SP6 Paint System: Cross linked two-part epoxy primer followed by polyurethane topcoat Foundation Anchor Bolts 3/4" X 7" included Load Cell: 77,000 lb CPR-M analog compression column, 700 Ohm, 2 mV/V, Stainless steel hermetically sealed (IP68) construction Load Cell Cable: Stainless steel sheathed cable with clear polymer protective coating, integral Electrical: Junction Box: NEMA 4X FRP enclosure(s) and 4-cell summing board with GDT surge protection Surge Protection: CPR-M analog load cells utilize ground straps and base plate isolation disc Surge protection enhanced by Tripp Lite Isobar Ultra 4-Outlet line transient protection device
These scales are also available in a digital load cell model.
