CLM8 - CLM16
Key Features
- Advanced digital weighing system compatible with analog load cells
- Supports 8 or 16 independent load cell channels (16 channels by connecting two CLM8 units)
- Digital load cell equalization for improved accuracy
- Automatic system diagnostics
- Integrated inclinometer function
- Available in multiple configurations:
- IP67 stainless steel enclosure

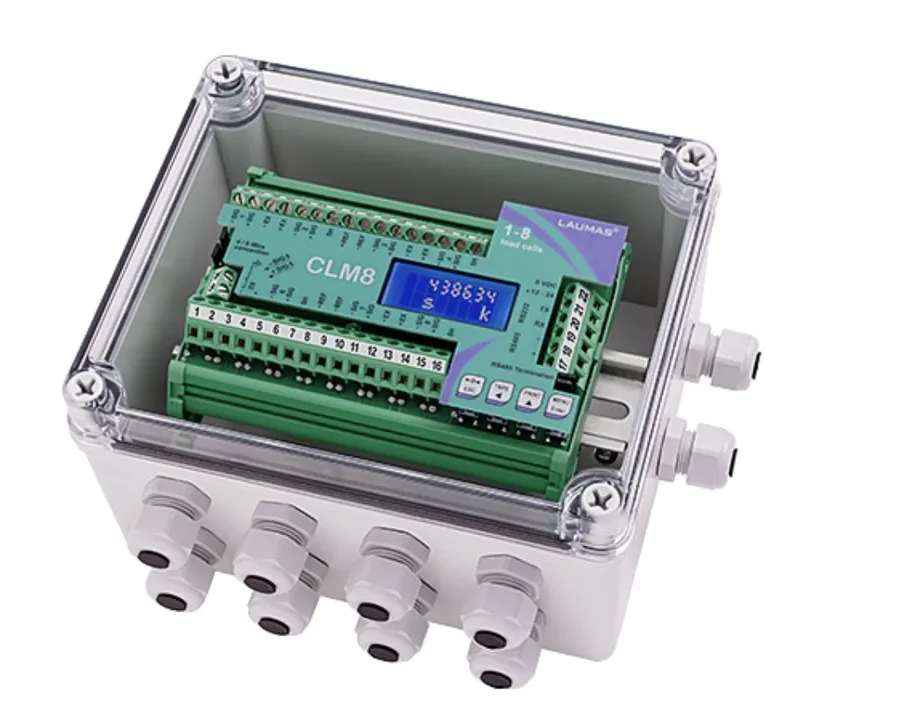

- IP67 polycarbonate enclosure
- Omega/DIN rail mounting version
- Board-only version for OEM applications
- Built-in Ethernet TCP/IP for remote monitoring and management via PC, smartphone, or tablet
- RS232 and RS485 communication ports with Modbus RTU and Laumas ASCII protocols
- OIML R 76:2006 Class III approved (3 × 5000 divisions, 0.4 μV/VSI)
- High-performance 24-bit A/D converter with 8 input channels, 16 million internal counts, and 4.8 kHz conversion rate
- Display range up to 999,999 divisions
- Power Supply: 12–24 VDC (LPS or Class 2 power source)
- Load Cell Support: 8 independent load cell inputs
- Measurement Range: ±39 mV
- Load Cell Sensitivity: Up to ±7 mV/V
- Display: 6-digit display with range up to ±999,999
- A/D Conversion Rate: Up to 600 conversions per second
- Display Resolution: 0–4 decimal places with selectable increments (1, 2, 5, 10, 20, 50, 100)
- Digital Filter: 21 selectable levels
- Communication: RS232 and RS485 serial ports
- Baud Rates: 1,200 to 115,200 bps
- Operating Temperature: -20°C to +60°C (-4°F to +140°F)
- Storage Temperature: -30°C to +80°C (-22°F to +176°F)
- Maximum Humidity: 85% RH, non-condensing
- Approvals: OIML and INMETRO approved models available
The CLM8 Series Intelligent Junction Box is an advanced digital weighing solution that enhances analog load cell systems with eight independent channels, expandable to 16. It features digital equalization, load distribution analysis, automatic diagnostics, optional tilt compensation, and RS232/RS485 communications with optional Ethernet TCP/IP for remote monitoring. Available in multiple enclosure options, the CLM8 delivers reliable performance for a wide range of industrial weighing applications.
