TLB
Key Features
- Compact weight transmitter with a 6-digit red LED display (8 mm character height)
- Space-saving design with Omega/DIN rail mounting
- 24-bit A/D converter with 16 million internal counts and 4.8 kHz conversion rate
- 16-bit analog output supporting 0/4–20 mA, 0–5/10 V, and ±5/10 V
- RS485 communication with Modbus RTU and Laumas ASCII protocols
- 2 digital inputs and 3 programmable relay outputs
- Four-button keypad for easy calibration and configuration
- Six status indicator LEDs for system monitoring
- Display range up to 999,999
- OIML R 76:2006 Class III approved (10,000 divisions, 0.2 μV/VSI)
- OIML R 61 and WELMEC Guide 8.8:2011 (M.I.D.) compliant for legal-for-trade applications
- Display: 6-digit semi-alphanumeric red LED display (8 mm character height)
- Power Supply: Supports up to 8 load cells (350 Ω, 4- or 6-wire), 5 VDC / 120 mA excitation
- A/D Converter: 24-bit with 16 million internal counts, 4.8 kHz conversion rate
- Accuracy Class: OIML Class III or IIII (model/region dependent)
- Maximum Verification Divisions:
- Class III: Up to 10,000 divisions
- Class IIII: Up to 1,000 divisions
- Operating Modes: Single interval, multi-interval, and multiple range (region dependent)
- Analog Output Performance (TLB):
- Linearity: <0.01% full scale
- Thermal Drift: <0.0005% full scale/°C
- Operating Temperature: Industrial temperature range (varies by certification)
- Compliance & Certifications:
- OIML R76:2006
- EN45501:2015
- EU 2014/31/EU
- UK Non-Automatic Weighing Instrument Regulations 2016
- NIST Handbook 44 (USA)
- NCWM Publication 14 (USA)
- Canada Weights and Measures Regulations
- Brazil INMETRO Portaria No. 157/2022

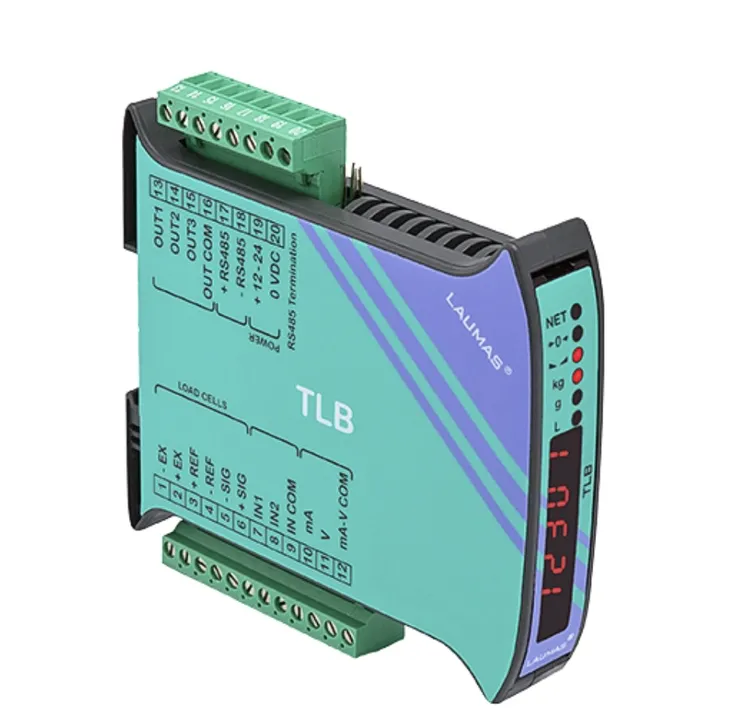

The TLB Weight Transmitter is a compact, DIN rail-mounted weighing controller designed for industrial applications where space is limited. Featuring a six-digit red LED display, six status LEDs, and a four-button keypad for easy calibration, it offers convenient system configuration and monitoring. Removable screw terminals simplify installation, while the free Instrument Manager PC software enables quick setup and management.
