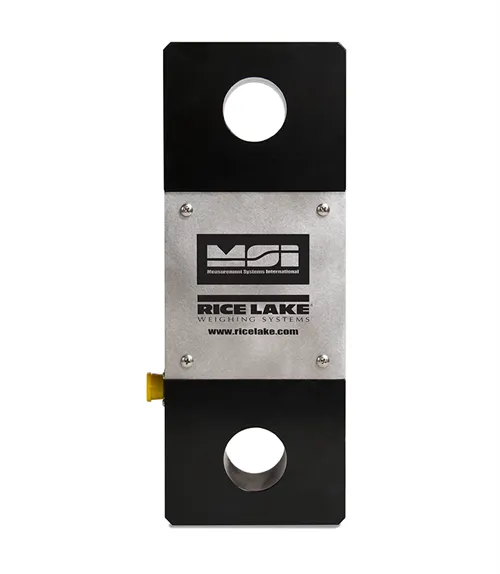

MSI Tension Link Load Cell
Key Features:
- Designed for Permanent Installations in industrial lifting and monitoring applications
- Mil-Spec Connector for reliable, secure connections in demanding environments
- Analog Communication Sensor for integration with weight transmitters and instrumentation
- Compatible with Multiple Systems, including MSI-8004HD weight indicator, Rice Lake - - SCT transmitters, and MSI TranSend® wireless load cell interface
- Versatile Installation Options — installs in lift chains or between the lifting apparatus and crane block
- Real-Time Load Measurement for accurate weight monitoring
- Built-In Safety Monitoring to help detect overload and unsafe lifting conditions
Accuracy
- ±0.1% sensor accuracy
Construction
- Material: 4340 steel
Electrical
- Full Scale Output: 0.8 mV/V
- Output Resistance: 2,000 ohm
- Input Resistance: 1,500 ohm
Connector Pinout
- A: EX +
- B: SIG +
- C: SIG −
- D: EX −
Integrates between a crane block and lifting equipment to provide force measurement for lifted items. This is an ideal solution for crane weighing and features a 7:1 safety factor for compliance with industrial and military safety requirements.
