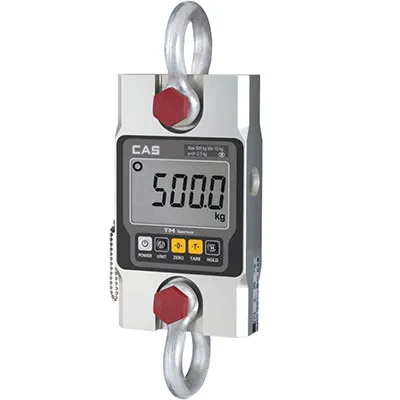

CAS TM Series Dynamometers
Key Features:
- 1,000 lb - 10,000 lb capacities
- Large 1.2 inch LCD display
- Battery operated - Four AA batteries
- Aluminum enclosure environmentally sealed to IP65 standards
- Set points for relay control
- Wireless ZigBee communication ready
- Ideal for general crane scale applications, overload protection & measuring tension
- 2 year warranty
Specifications
Available Models: TM-0.5, TM-1, TM-3, TM-5
Capacity Options
- TM-0.5 — 0.5 ton (500 kg max, 10 kg min)
- TM-1 — 1 ton (1,000 kg max, 20 kg min)
- TM-3 — 3 ton (3,000 kg max, 40 kg min)
- TM-5 — 5 ton (5,000 kg max, 100 kg min)
Division (e=d)
- TM-0.5: 0.5 kg
- TM-1: 1 kg
- TM-3: 2 kg
- TM-5: 5 kg
Resolution
- TM-0.5: 1/1000
- TM-1: 1/1000
- TM-3: 1/1500
- TM-5: 1/1000
Safety Factor: 3:1
Weight
- TM-0.5 / TM-1: 2.3 kg
- TM-3: 2.5 kg
- TM-5: 3.3 kg
Construction
- Material: Aluminum
- Protection Rating: IP65 / NEMA 4
- Operating Temperature: -20°C to +60°C
Shackles
- TM-0.5 / TM-1 / TM-3: Crosby G-2130 5/8" (1.24 kg pair)
- TM-5: Crosby G-2130 7/8" (3.58 kg pair)
The CAS TMZ-1000LBS Tension Meter Dynamometer provides accurate force measurement and overhead weighing with a 1,000 lb capacity and 1 lb readability.
Part of the CAS TM Series, this battery-operated dynamometer features a 1.2" LCD display, internal antenna, and durable design for reliable performance in industrial environments. Crosby shackles and a communications cable connector are included, with optional Crosby hooks available.
For advanced applications, the TWN portable handheld indicator with ZigBee® wireless communication is available for remote monitoring.
