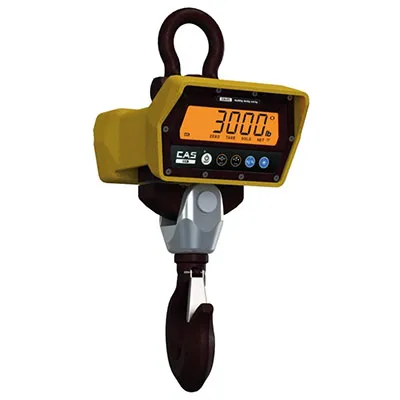

CAS CCB Series Crane Scales
The CAS CCB Series Crane Scale is a rugged, full-featured industrial scale designed for reliable overhead weighing. It features a bright backlit LCD display that remains easy to read even in direct sunlight and is available in capacities ranging from 2,000 to 20,000 lbs.
Key Features:
- Capacity Range: 2,000 lb – 20,000 lb
- Backlit LCD Display for clear visibility in all lighting conditions
- Swivel Crosby Hook for secure lifting and load stability
- Rechargeable Lithium Polymer Battery with charger included
- IR Remote Control for convenient operation
- ZigBee Wireless Communication Capability
- Durable Industrial Construction for Safe Operation
- 2-Year Warranty
Models & Capacities
- CCB-1TLF: 2,000 lb × 0.5 lb (1,000 kg × 0.2 kg)
- CCB-3TLF: 5,000 lb × 1 lb (2,500 kg × 0.5 kg)
- CCB-5TLF: 10,000 lb × 2 lb (5,000 kg × 1 kg)
- CCB-10TLF: 20,000 lb × 5 lb (10,000 kg × 2 kg)
Accuracy: ±0.1% of applied load (up to full capacity)
Safety Overload: 200% of rated capacity
Display
- 6-digit 1.18" (30 mm) backlit LCD
- 5-button keypad: On/Off, Zero, Tare, kg/lb, Function
Construction
- Aluminum die-cast enclosure
Power
- 3.7V lithium polymer rechargeable battery
- Approx. 12 hours operating time
Connectivity
- Up to 100 m (328 ft) operating distance with CRC-100 handheld indicator
Operating Temperature
- -20°C to 60°C (-4°F to 140°F)
Product Weight
- CCB-1TLF: 19.6 lb (8.9 kg)
- CCB-3TLF: 33.5 lb (15.2 kg)
- CCB-5TLF: 36.8 lb (16.7 kg)
- CCB-10TLF: 59.3 lb (26.9 kg)
The CAS CCB-1TLF Crane Scale offers reliable overhead weighing with a 2,000 lb capacity and 0.5 lb readability. Part of the rugged CCB Series, it features a bright backlit LCD display with large 1.18" (30 mm) characters, making readings clear even in direct sunlight.
Standard features include an infrared remote control, swivel hook, and a long-lasting lithium polymer (Li-Po) rechargeable battery for convenient operation. For advanced applications, the CCB Series supports optional accessories such as the CRC-100 wireless handheld indicator, remote LED displays, USB data storage, and ZigBee wireless communication via the CRC-200 communication dongle.
