CAS Caston III Plus Crane Scales
Key Features:
- 10K, 20K, 30K, 40K, 60K*, & 100K lb Capacities
- 1.5 inch Red LED Display
- Rechargeable 12v Battery
- Rugged Cast Aluminum Case
- Includes Remote Control, Extra Battery, and Charger
- Bluetooth Models Include TWN Handheld Portable Indicator
- Environmentally Sealed to IP65 Standards
- Convenient, easy to change battery pack
- 2 year warranty
Models Available
- Caston III
- Caston III BT (Bluetooth)
Capacity & Readability
10K
- 10,000 lb × 2 lb
- 5,000 kg × 1 kg
20K
- 20,000 lb × 5 lb
- 10,000 kg × 2 kg
30K
- 30,000 lb × 10 lb
- 15,000 kg × 5 kg
40K
- 40,000 lb × 10 lb
- 20,000 kg × 5 kg
60K
- 60,000 lb × 20 lb
- 30,000 kg × 10 kg
100K
- 100,000 lb × 20 lb
- 50,000 kg × 10 kg
Performance
- Accuracy: ±0.1% of applied load
- Maximum Tare: Full tare
- Overload Safety: 150% of rated capacity
- Ultimate Overload: 300% of rated capacity
Construction
- Housing: Alodined cast aluminum
- Sealing: Double O-ring gasket
- Protection Rating: NEMA 4 / IP65
- Hook, Eye & Shackles: Crosby or equivalent
Display
- Type: 6-digit LED display
- Character Size: 1.5 inches
- Indicators: Zero, Tare, Hold, Battery
Wireless (Caston III BT Models)
- Frequency: 2.4 GHz
- Remote Distance: Up to 350 ft (106.7 m)
- Channels: Up to 79 separate channels
Power
- Operating Power: DC 12V
- Operating Time: 14–24 hours
- Power Source: AC 120V, 50/60 Hz
- Power Consumption: 1.2 W
Environmental
- Operating Temperature: -10°C to 40°C (14°F to 104°F)
Warranty
- 2-Year Warranty

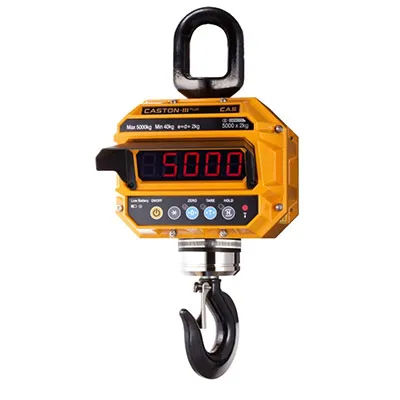

The CAS CAST3-PLUS(10K) Caston III crane scale has a capacity of 10,000 lbs with a readability of 2 lbs and comes with an LED display. The CAS CASTON III PLUS is ideal for heavy duty use in harsh industrial environments. The CASTON III PLUS is a full featured, rugged industrial crane scale with standard features that include a watertight enclosure, 1.5" high intensity LED display, simple, easy to use rechargeable battery pack, wireless remote control, swivel hook, and portable hand held indicator.
