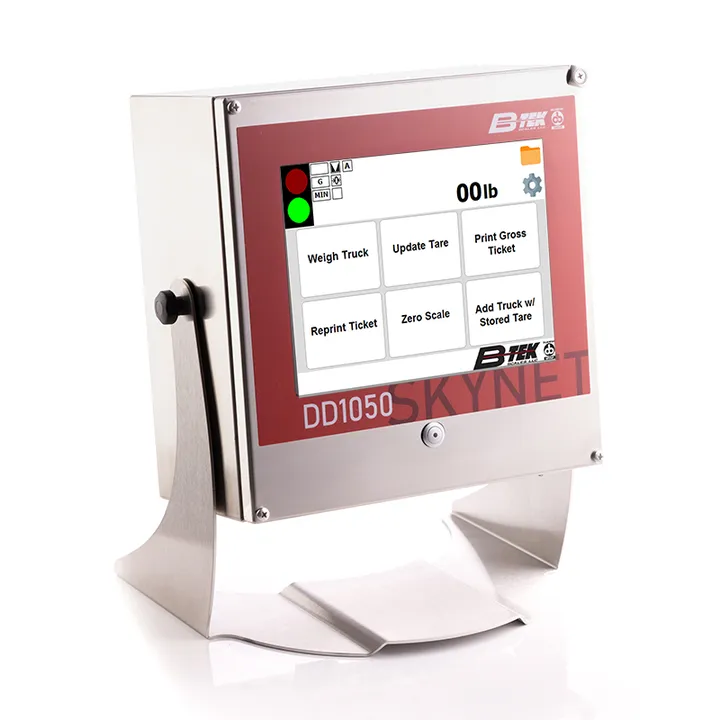

SKYNET DD1050 Indicator
The SKYNET DD1050 is a fully integrated scale information and control terminal engineered for intuitive operator interaction and high-performance weighing applications. Designed to support demanding truck and axle weighing environments, the DD1050 delivers fast processing, advanced connectivity, and customizable software—all in a rugged industrial platform.
Mounting Options:
- DD1050ic: Stainless steel desk mount, IP20 / NEMA 1
- DD1050i: Stainless steel wall mount, IP69K / NEMA 4X
Key Features:
- Freely programmable for custom applications
- Standard truck in/out and axle weighing software (up to 10 axles)
- Touchscreen, mouse, or keyboard operation with optional external monitor
- Network-ready with broad peripheral support
- SQL-based data access via email, USB, Data Studio, and ScaleSoft Unattended
- Ultra-fast responsiveness, reboot, and digital calibration
- Remote transactions with shared office and scale house databases
- B-TEK Nexia integration for advanced scale health monitoring
Certifications & Compliance
- NTEP Certificate of Conformance: 13-055A1
- Canada COC: 5981r1
- Power Supply: UL Approved
- File Numbers: E209833 & E183223
- File Numbers: E209833 & E183223
Display & User Interface
- Display: 10.4" color touchscreen
- Technology: High-contrast display
- Touchscreen: Protective cover included
- User Interface:
- User-programmable displays, icons, graphics, and layouts
- Remote operation over Ethernet using a Windows® computer
- User-programmable displays, icons, graphics, and layouts
Enclosure & Mounting
- Housing: Stainless steel
- Mounting Options:
- DD1050ic: Desk mount
- DD1050i: Wall mount
- DD1050ic: Desk mount
Environmental Ratings
- DD1050ic: IP20
- DD1050i: IP69K
Processor & Memory
- Processor: High-speed 1 GHz dual-core processor
- Memory: 1 GB internal memory
Communications & I/O
- Ethernet:
- (1) 10/100 Ethernet (wired)
- (1) 10/100 Ethernet (wired)
- Serial Ports:
- (1) RS-232 / RS-422 port
- (1) RS-232 port
- (1) RS-232 / RS-422 port
- Digital I/O:
- (2) Inputs
- (2) 24 VDC opto-isolated relay outputs
- (2) Inputs
- Expansion:
- (2) expansion card slots
- (2) expansion card slots
Scale Inputs & Performance
- Scale Input: Analog or digital
- Update Rate: Up to 100 readings per second
- Load Cell Capacity:
- Up to (12) × 350 Ω analog load cells
- Up to (24) analog load cells (quad-scale version)
- Up to (16) digital load cells standard
- Up to (24) digital load cells with power regulator upgrade
- Up to (12) × 350 Ω analog load cells
- Multi-Scale Support:
- Up to (4) scales
- Up to (4) scales
USB Connectivity
- USB Ports: (4) USB host ports
- Supported Interfaces:
- USB to RS-232 (FTDI chipset)
- USB to RS-422 (FTDI chipset)
- USB to RS-232 (FTDI chipset)
Software & System Features
- Local or remote indicator operation with shared database via TCP/IP Ethernet
- Easily customizable ticket formats
- Built-in traffic light control
- Photo-eye inputs for truck positioning
- Advanced internal scale diagnostics and statistics
- Modbus TCP Server built into software
Optional Hardware & Upgrades
- Up to three additional scale inputs (analog or digital)
- (8) input / (12) output I/O expansion card
- HDMI card for external display or repeater
- Pulse count input up to 2 kHz
- Analog I/O options:
- Outputs: 0–10 V or 4–20 mA
- Inputs: 0–10 V or 4–20 mA
- Outputs: 0–10 V or 4–20 mA
The SKYNET DD1050 weighing indicator is a fully integrated scale information and control terminal designed for intuitive operator interaction and high-performance industrial weighing applications. It features a 10.4" high-resolution color touchscreen, delivering clear visibility and easy navigation. With robust connectivity, the DD1050 supports a wide range of external peripheral devices that can be managed either directly at the terminal or remotely, providing flexibility across scale house and office environments.
