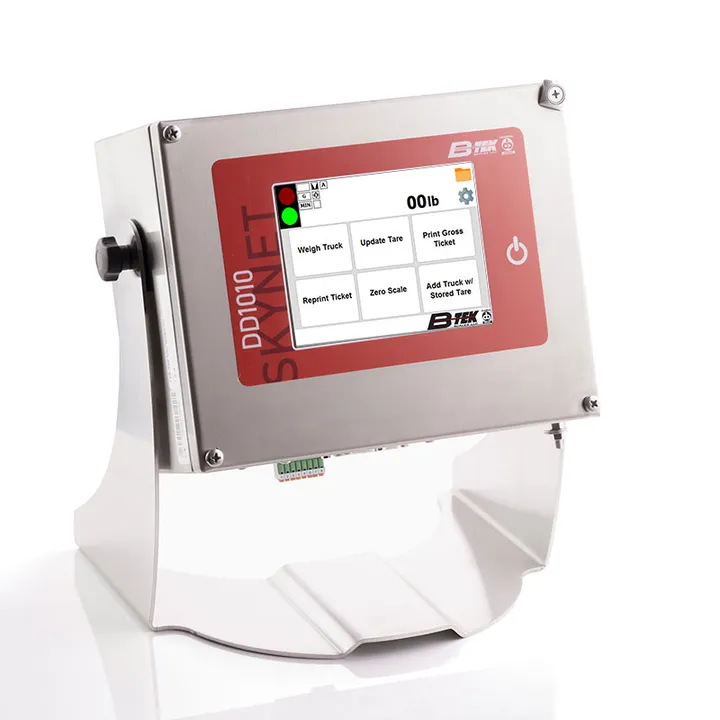

SKYNET DD1010 Indicator

The SKYNET DD1010 is a fully integrated scale information and control terminal engineered for seamless operator interaction and powerful system flexibility. Designed for demanding industrial environments, it combines a 5.7" high-resolution color touchscreen with robust connectivity to manage a wide range of peripheral devices—directly from the terminal.

With fast performance, customizable software, and enterprise-level data access, the DD1010 delivers precision, efficiency, and visibility across your weighing operations.

Enclosure Options:

- Standard: ABS enclosure, IP20 / NEMA 1
- IC: Stainless steel desk mount, IP20 / NEMA 1
- I: Stainless steel wall mount, IP69K / NEMA 4X

Key Features:

- Freely programmable for custom applications
- Standard truck in/out and axle weighing software (up to 10 axles)
- Touchscreen, mouse, or keyboard operation with optional external monitor
- Network-ready with broad peripheral support
- SQL-based data access via email, USB, Data Studio, and ScaleSoft Unattended
- Ultra-fast responsiveness, reboot, and digital calibration
- Remote transactions with shared office and scale house databases
- B-TEK Nexia integration for advanced scale health monitoring

Technical Specifications

Certifications & Compliance

NTEP Certificate of Conformance: 14-010A1
Canada COC: AM-5935C Rev. 1
Power Supply: UL Approved
- File Numbers: E209833 & E183223

Display & User Interface

Display: 5.7" color touchscreen
Technology: High-contrast TFT color display
Touchscreen: Protective cover included
User Interface:
- User-programmable displays, icons, graphics, and layouts
- Remote operation over Ethernet using a Windows® computer

Environmental Ratings

Standard & IC Versions: IP20
I Version (DD1010i): IP69K

Processor & Memory

Processor: High-speed 1 GHz dual-core processor
Memory: 1 GB internal memory

Communications & I/O

Ethernet:
- (1) 10/100 Ethernet (wired)
Serial Ports:
- (1) RS-232 / RS-422 port
- (1) RS-232 port
Digital I/O:
- (2) Inputs
- (2) 24 VDC opto-isolated relay outputs
Expansion:
- (2) expansion card slots

Scale Inputs & Performance

Scale Input: Analog or digital
Update Rate: Up to 100 readings per second
Load Cell Capacity:
- Up to (12) × 350 Ω analog load cells
- Dual-scale version: (12 + 12) analog load cells
- Up to (10) digital load cells standard
- Up to (24) digital load cells with Power Regulator upgrade
Multi-Scale Support:
- Up to (4) scales

USB Connectivity

USB Ports: (4) USB host ports
Supported Devices:
- USB mouse
- USB keyboard (on-screen keyboard supported)
- USB-to-RS232 (FTDI chipset)
- USB-to-RS422 (FTDI chipset)

Software & System Features

Local or remote indicator operation with shared database via TCP/IP
Easily customizable ticket formats
Built-in traffic light control
Photo-eye inputs for truck positioning
Advanced internal scale diagnostics and statistics
Modbus TCP Server built into software

Optional Hardware & Upgrades

Additional scale input (analog or digital)
(8) input / (12) output I/O expansion card
HDMI card for external display or repeater
Pulse count input up to 2 kHz
Analog I/O options:
- Analog output: 0–10 V or 4–20 mA
- Analog input: 0–10 V or 4–20 mA

The SKYNET DD1010 weighing indicator is a fully integrated scale information and control terminal designed for intuitive operator interaction and reliable industrial performance. It features a 5.7" high-resolution color touchscreen display with configurable graphics, providing clear visibility and ease of use. The DD1010 also offers the flexibility to connect to a wide range of external peripheral devices, all of which can be managed directly from the terminal for streamlined scale operations.
