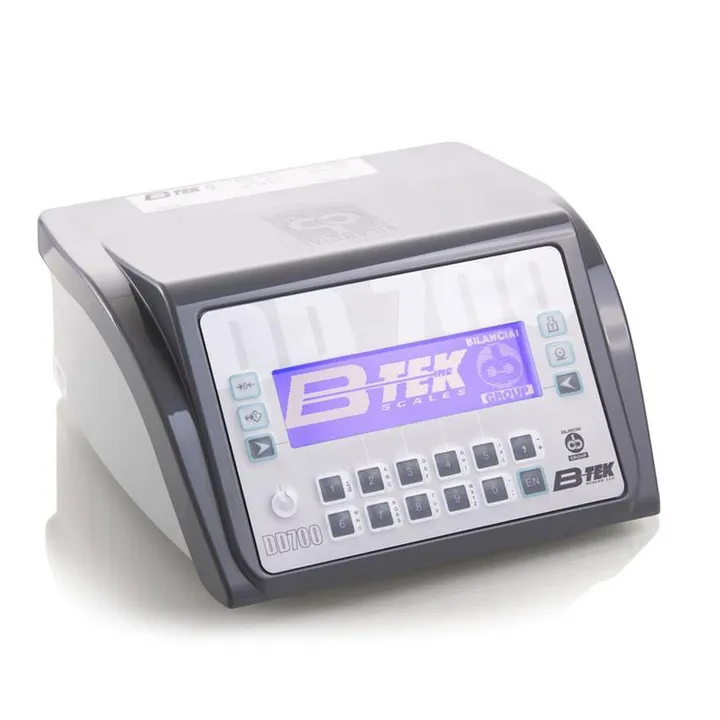

DD700 Series Weighing Terminal
Simple Operation. Flexible Applications. Industrial Durability.
The DD700 Series weighing terminals are designed from the ground up for simplicity and ease of use, making them ideal for a wide range of industrial weighing applications. Each terminal comes preloaded with single weighing and truck in/truck out software, allowing for quick setup and efficient operation right out of the box.
A built-in USB port supports a QWERTY keyboard for fast and accurate data entry, while optional software expands functionality to meet evolving operational needs. With multiple enclosure options, the DD700 Series delivers reliable performance across diverse industrial environments.
Key Features:
- Preloaded single weighing and truck in/truck out programs
- Simple, intuitive user interface for fast operator adoption
- USB port for QWERTY keyboard data entry
- Optional software for:
Piece counting
Totalizing
Check weighing with light bar
Batching
Multi-operator mode
- Designed for rugged industrial applications
- Multiple enclosure options to match environmental requirements
Models & Enclosure Options
DD700
ABS plastic enclosure
IP Rating: IP20
DD700i
Stainless steel enclosure
IP Rating: IP69K
DD700ic
Stainless steel enclosure
IP Rating: IP65 front panel / IP20 enclosure
DD700PM
Stainless steel enclosure
IP Rating: IP65 front panel / IP20 enclosure
Certifications & Compliance
- NTEP Certificate of Conformance: 15-113
- Canada Approval: AM-6012
- Power Supply: UL Approved
- File Numbers: E209833 & E183223
- File Numbers: E209833 & E183223
Enclosure & Mounting
- DD700: Desktop mount, molded ABS plastic enclosure
- DD700i: Stainless steel enclosure with swivel and wall-mount brackets
- Ingress Rating: IP69K
- Ingress Rating: IP69K
Display & Keypad
- Display: High-visibility, backlit full graphic LCD
- Keypad: 18-key membrane keypad
Data & Storage
- Customizable ticket formats with time and date
- Store up to 15,000 trucks, products, and customers in memory
- Export transaction data to USB flash memory
- Extensive built-in diagnostic screens
Scale Input Capacity
- Up to (12) 350 Ω analog load cells
- Up to (12) digital load cells
Communications & I/O
- Option Card Slots:
- (2) plug-and-play expansion slots
- (2) plug-and-play expansion slots
- USB:
- (1) USB host (Type A) for updates, backups, archiving, and keyboard input
- (1) USB serial device (Type B)
- (1) USB host (Type A) for updates, backups, archiving, and keyboard input
- Digital I/O:
- (2) isolated dry contact inputs
- (2) relay outputs (24 VDC max)
- (2) isolated dry contact inputs
- Serial Ports:
- (1) RS-232
- (1) configurable RS-232 / RS-422 / RS-485 port
- (1) RS-232
Connectivity
- Local or remote indicator operation via:
- RS-232
- RS-422
- TCP/IP Ethernet (via converter)
- RS-232
Languages
- Six built-in language options
Applications (Standard & Optional)
- Single weighing
- Double weighing
- Counting
- Totalization
- Multi-operator mode
- Batching
- Check weighing
The DD700 Series weighing terminal is designed from the ground up to deliver simple, user-friendly operation for a wide range of industrial weighing applications. Each terminal comes preloaded with single weighing and truck in/truck out programs, allowing operators to begin weighing quickly with minimal setup.
A built-in USB port supports QWERTY keyboard input for fast and accurate data entry, while optional software expands functionality to include piece counting, totalizing, check weighing with light bar, batching, and multi-operator modes. With multiple enclosure options available, the DD700 Series provides the flexibility and durability needed for industrial environments.
