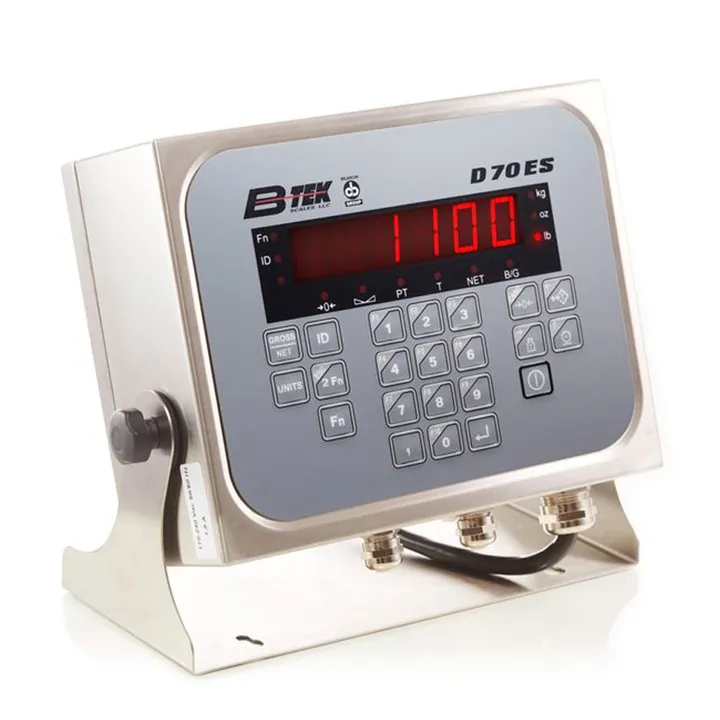

D70ES Multi-Functional Analog Indicator
The D70ES is B-TEK’s most versatile analog weighing indicator, engineered to support a wide range of industrial weighing applications, from bench and floor scales to full truck scale operations. Designed for both simple weighing and advanced Truck In/Out functionality, the D70ES delivers powerful performance with intuitive operation.
Built for demanding environments, the indicator is housed in a rugged stainless steel enclosure with an IP66 rating, ensuring reliable operation in harsh industrial settings. Fast system deployment is achieved through seven preloaded scale modes, allowing operators to quickly configure the indicator for truck, floor, or bench scale applications with minimal downtime.
Key Features:
- Quick Set-Up Function – Rapid deployment using seven pre-configured scale modes
- Truck In/Out Functionality – Streamlined workflow for truck weighing and data tracking
- Customizable Print Formats & Data Streams – Tailor outputs to match operational and reporting needs
- Durable Stainless Steel Enclosure – IP66-rated housing with swivel bracket for industrial durability
- Flexible Power & Display Options – Supports AC or DC power and can function as a primary or secondary display
Enclosure & Environmental
- Housing: Stainless steel enclosure with swivel bracket
- Ingress Rating: IP66 / NEMA 4X
Display & Keypad
- Display: Red LED, 7-segment
- Digits: 6 digits, 0.8" height
- Keypad: Numeric and 10-function membrane keypad
Setup & System Features
- Quick set-up function with seven pre-configured modes
- Capacitive-backed time, date, and year
- Audit trail tracking for configuration and calibration changes
Scale Input & Applications
- Supports up to (12) 350 Ω load cells
- Single weighing
- Truck In/Out
- Peak hold
- Totalizing by partial, general, or code
Power
- Power Supply:
- 120 VAC
- 12 VDC (external)
Data & Output
- Configurable print formats
- Truck ID storage: up to 300 registrations
- Configurable as primary or secondary display
Units of Measure
- Pounds (lb)
- Kilograms (kg)
- Ounces (oz)
Certifications
- NTEP Certificate of Conformance: 17-010
- Measurement Canada: AM-6054C
- OIML: R76/2006-NL1-17.33
The D70ES is B-TEK’s most versatile analog weighing indicator, delivering powerful performance across a wide range of industrial weighing applications. Designed for bench, floor, and truck scales, it supports everything from basic weighing to advanced Truck In/Out operations, providing flexibility for growing operations.
Built for demanding environments, the D70ES is housed in a rugged stainless steel enclosure with an IP66 rating, ensuring reliable operation in harsh industrial settings. Intuitive controls, flexible configuration options, and seven preloaded scale modes enable rapid setup and minimal downtime. With support for single-ingredient batching, customizable print formats, and up to 300 Truck ID registrations, the D70ES gives operators the control and efficiency needed to keep weighing operations moving smoothly.
