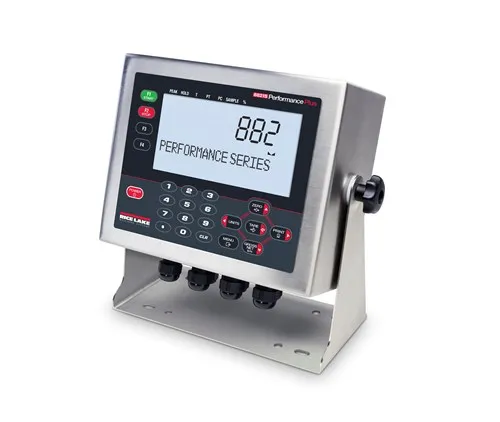

882IS/882IS Plus Intrinsically Safe Digital Weight Indicator
The 882IS and 882IS Plus intrinsically safe digital weight indicators are designed for reliable weighing in hazardous environments, delivering safe, accurate performance without sacrificing functionality. Approved for use in classified locations, these indicators use fiber-optic communication to provide secure, long-distance data transmission while maintaining intrinsic safety.
Featuring a high-visibility LCD display with white LED backlight, intuitive operation, and power-saving battery management, the 882IS Series is well suited for demanding industrial applications. The 882IS Plus adds a numeric keypad for enhanced data entry and control. With flexible local/remote configuration options and expandable I/O capabilities, the 882IS Series integrates easily into complex weighing and control systems.
Key Features:
- Intrinsically Safe Design for hazardous locations
- Dual duplex fiber-optic interface with communication distances up to 500 ft
- High-contrast LCD display with white LED backlight
- T4 temperature rating
- Battery life status icon for easy monitoring
- Power ON/OFF and battery save mode
- Configurable local or remote operation
- 882IS Plus: Numeric keypad for enhanced operator input
Optional I/O module supporting:
One serial port
Optional analog output
Optional fieldbus cards
Ethernet TCP/IP
- Time and date functionality (requires I/O module)
- Setpoint functionality when used with a secondary 920i® indicator
- FM Entity Approved for hazardous locations per Rice Lake Weighing Systems control drawing File No. 221416
Technical Specifications
Power
- Input Voltage: 5.8 to 7.9 VDC
- Current Draw: 100 to 175 mA
Power Consumption
- 0.25 W
Battery (Optional)
- Operating Time:
- Up to 60 hours with (4) × 350 Ω load cells
- 80–100 hours with (1) × 350 Ω load cell
- Charging Time: 8–10 hours
Load Cell Excitation
- Voltage:
- 3.0 VDC at 87.5 Ω
- 4.6 VDC at 700 Ω
Load Cell Current
- 34 mA with (4) × 350 Ω or (8) × 700 Ω load cells
Load Cell Cabling
- Four- or six-wire load cells
- Remote sensing recommended
Analog Performance
- Input Range: −0.5 mV/V to 4.0 mV/V
- Sensitivity:
- Minimum: 0.2 μV/graduation
- Recommended: 1.5 μV/graduation
- Resolution:
- Internal: 1,000,000 counts
- Display: 10,000 divisions
- (Maximum graduations vary by application)
- Conversion Rate: 60 updates per second
Annunciators
- Center of zero
- Gross / Net
- Motion
- Units: lb, kg, oz, g
Motion Band
- Configurable to ±1 or ±3 graduations
- 1-second delay (or Off)
Display
- Seven-digit, seven-segment LCD
- 121 × 24 dot matrix messaging area
- White LED backlight
Display Increments
- 1, 2, 5
Keypad & Controls
- Flat membrane keypad with tactile feel
- 882IS Keys:
- Zero
- Gross/Net
- Tare
- Units Conversion
- Start / Stop
- 882IS Plus Keys:
- All standard keys plus full numeric keypad
Optical (Fiber-Optic) Ports
- Physical Medium: 2.2 mm plastic fiber, 640 nm
- Transmission Type: Full duplex
- Maximum Distance: 500 ft (152 m)
Environmental
- Operating Temperature:
- 14 °F to 104 °F (−10 °C to 40 °C)
- 14 °F to 104 °F (−10 °C to 40 °C)
Enclosure
- Material: Stainless steel
- Ingress Protection: IP66
Weight
- 6.1 lb (2.8 kg)
Warranty
- One-year limited warranty
Intrinsic Safety Certifications
- FM / cFMus:
- Class I, II, III, Division 1, Groups A–G, T4
- Class I, Zone 0, AEx/Ex ia IIC T4 Ga
- Zone 21, AEx/Ex ib IIIC T135°C Db
- Ambient Temperature: −10 °C to 40 °C
- ATEX / IECEx:
- II 1 G Ex ia IIC T4 Ga
- II 2 D Ex ib IIIC T135°C Db
Approvals
- NTEP: 19-015
- Measurement Canada: AM-6124C
- OIML: R76/2006-A-NL1-21.11
- EU Type Evaluation Certificate: T11166
- CE Listed
- UKCA
- cULus Listed*
- cFMus Approved
- ATEX
- IECEx
*cULus listing applies only to the 882IS I/O module and battery charger
The 882IS intrinsically safe weight indicator is engineered for reliable operation in hazardous environments, offering flexible power options and robust protection. An auto-ranging intrinsically safe power supply allows wiring through a single AC conduit from the safe area, while an FM-approved rechargeable battery provides isolated power for mobile or standalone applications.
Designed for clear visibility and ease of use, the 882IS features a backlit LCD display that remains bright and readable even in low-light conditions. Its stainless steel enclosure delivers superior resistance to environmental exposure, ensuring long-term durability in demanding industrial settings.
To enhance system flexibility, the 882IS supports an optional safe-area I/O Module with serial communication, Ethernet TCP/IP, and optional analog output or fieldbus cards for seamless integration with printers, computers, and other peripherals. A duplex fiber-optic port provides electrically isolated communication between the indicator and the I/O Module. For a complete intrinsically safe solution, the 882IS interfaces with FM/ATEX-approved load cells and junction boxes, delivering a fully certified weighing system for hazardous locations.
