880/880 Plus Performance™ Digital Series Programmable Weight Indicator/Controller
The 880/880 Plus Performance™ is a programmable industrial weight indicator/controller built for accurate weighing and advanced control in demanding applications. It combines strong connectivity, secure audit tracking, and flexible configuration for batching, process control, and networked weighing systems.
Key Features:
- Bright LED display
- USB device port for direct PC connection
- Ethernet TCP/IP (polled or continuous; server/client)
- RS-232 or RS-485 communication
- Display and controller separation up to 250 ft (panel mount)
- Built-in DIN-rail clips on controller box (panel mount)
- Hardware slot for one option card
- Menu access to preset tare, accumulator, time/date, setpoints, and audit trail
- Password-protected audit trail for configuration & calibration changes
- 20 setpoints with latched batch engine or unlatched outputs
- Four onboard digital I/O channels
- Programmable ticket formats (up to 1,000 characters)
- Five-point linearization calibration
- Multi-range or multi-interval weighing
- Selectable noise filtering: light / medium / heavy
Power
- AC Line Voltages: 100–240 VAC
- Frequency: 50/60 Hz
- DC Voltages: 12–24 VDC
- Power Consumption: AC: 15 W; DC: 20 W
Load Cell / Excitation
- Excitation Voltage: 10 VDC (±5 VDC)
- Load Cell Capacity: 16 × 350Ω or 32 × 700Ω load cells
Analog Performance
- Analog Signal Input Range: -45 mV to 45 mV
- Analog Signal Sensitivity:
- 0.3 μV/graduation minimum at 7.5 Hz
- 1.0 μV/graduation recommended
- A/D Sample Rate: 7.5 to 960 Hz, software selectable
- Resolution:
- Internal: 8,000,000 counts
- Display: 999,999
- System Linearity: ±0.01% full scale
Digital I/O
- Onboard Digital I/O: Four I/O channels
- Supported Functions: Primary keys, pseudo functions, batching functions
Optional Analog Output
- Voltage Output: 0–10 VDC
- Load Resistance: 1 kΩ minimum
- Current Output: 0–20 mA or 4–20 mA
- External Loop Resistance: 500Ω maximum
Optional Relay Board
- Relay Module: Four-channel, dry contact
- Contact Rating: 3 A at 115 VAC; 3 A at 30 VDC
Communication Ports
- Serial: RS-232 (full duplex) or RS-485 (half duplex)
- USB: USB Micro A/B connector (2.0)
- Ethernet: TCP/IP
Display & Operator Interface
- Display: LED, 0.56 in (14 mm), six-digit, 14-segment with decimal or comma
- Annunciators: Gross, net, center of zero, standstill, lb, kg, tare, preset tare, multi-range/interval 1/2/3
- Keys/Buttons: Membrane panel with tactile feel
Environmental
- Certified Temperature Range: 14°F to 104°F (-10°C to 40°C)
- Operating Temperature Range: 14°F to 122°F (-10°C to 50°C)
Dimensions (L × W × H)
- Panel: 6.00 × 4.95 × 4.00 in (152 × 126 × 102 mm)
- Universal: 9.87 × 4.00 × 9.38 in (248 × 102 × 235 mm)
Enclosure / Rating / Material
- Panel Display: Stainless steel; NEMA Type 4X, Type 12; IP69K
- Panel Mount Controller: Aluminum
- Universal: Stainless steel; IP69K
Weight
- Panel: 2.5 lb (1.2 kg)
- Universal: 6.5 lb (2.9 kg)
Warranty
- Warranty: Two-year limited
Compliance
- EMC Immunity: 10 V/m
Approvals
- NTEP: 13-080 Class III/IIIL, 10,000d
- Measurement Canada: AM-5931C
- OIML: R76/2006-A-NL1-18.23 Class III, 10,000d
- EU Test Certificate: TC8463
- Certifications: CE Marked
- Safety: cULus Listed (universal); cULus Recognized (panel mount)
Rice Lake’s Performance™ Series weight indicators/controllers are built for demanding process environments—powerful, easy to use, and communication-ready. Intuitive menu keys simplify navigation, while a NEMA Type 4X/IP69K-rated gasket helps protect internal components in harsh or washdown areas. With 20 time- and weight-based setpoints, the 880 and 880 Plus deliver fast, responsive control. Customize operation with iRite™ software and connect easily via USB, RS-232/RS-485, or Ethernet TCP/IP.
Expand functionality with option cards for fieldbus connectivity, analog output, relay control, dual serial outputs, or 24-channel digital I/O. Choose from two enclosure styles to fit your installation needs:

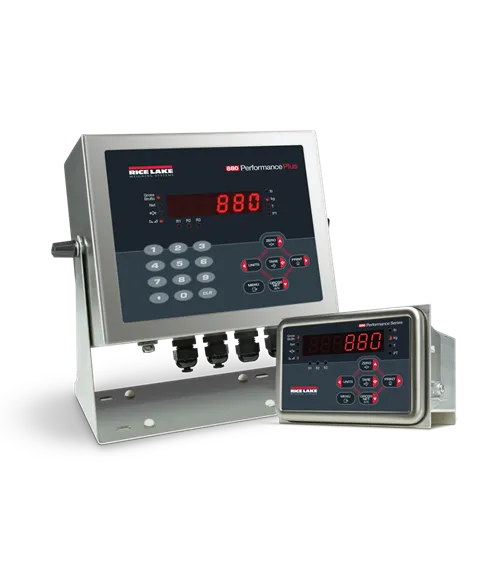

880 Panel Mount: Compact, DIN-rail ready, and supports remote display mounting for flexible installs.
880 Plus Universal Enclosure: Universal mount design with a numeric keypad for faster, more convenient operation.
