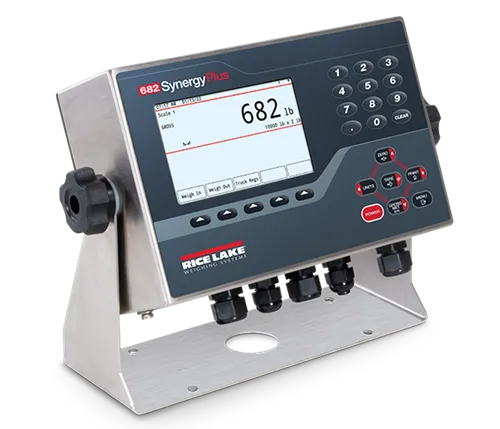

682 Synergy Series Digital Weight Indicator
The 682 Synergy Series is a modern industrial weight indicator built for easy operation, advanced control, and flexible connectivity. It features a full-color graphical LCD with configurable softkeys, plus a tactile numeric keypad for fast navigation and scale functions.
With built-in tools like Truck In/Out, batch presets, and 20 setpoints, the 682 supports efficient process control. A built-in web server enables remote access, data monitoring, and simple system integration, while multi-language support makes it ideal for diverse teams.
Key Features:
- Color graphical LCD with configurable softkeys
- Tactile numeric keypad
- Multi-language operation
- Formattable tickets
- Battery-backed time & date
- Multiple communication ports
- 20 setpoints (22 configurable types)
- Fieldbus communication via RS-485 (SCT-2200 modules)
- Built-in web server for remote monitoring & integration
- Built-in Truck In/Out + batch presets
- Four configurable digital I/O points (TTL)
- Continuous/demand serial scale input
- Multi-range/interval
Power
- AC Line Voltage: 100–240 VAC, 50/60 Hz
- Optional DC Input: 9–36 VDC
Power Consumption
- 3.2 W (AC) with one 350Ω load cell (15 W max)
- 4 W with four 350Ω load cells or eight 700Ω load cells
Load Cell / Excitation
- Excitation Voltage: 10 VDC (±5 VDC)
- Load Cell Capacity: 8 × 350Ω or 16 × 700Ω load cells
Analog Performance
- Analog Signal Input Range: -5 mV to +70 mV
- Analog Signal Sensitivity:
- 0.3 μV/graduation minimum
- 1.0 μV/graduation recommended
- A/D Sample Rate: 6.25 to 120 Hz, software selectable
- Resolution:
- Internal: 8,000,000 counts
- Display: 1,000,000
- System Linearity: Within 0.01% full scale
Digital I/O
- Onboard Digital I/O: Four configurable I/O points, 5 V logic
Optional Analog Output
- Resolution: 16-bit
- Voltage Output: 0–10 VDC
- Current Output: 0–20 mA / 4–20 mA
Optional Relay Board
- Relays: Four normally open dry-contact relays
- Switching Capacity: 20–250 VAC @ 3 A or 30 VDC @ 3 A
- Protection: COM-NO transient protected to 400 V @ 600 W
- Note: External fusing recommended to limit current
Communication Ports
- Serial: Two full-duplex RS-232
- RS-485/422: Two-wire or four-wire
- USB: Micro USB (device)
- Ethernet: TCP/IP (10/100)
- Wireless: Wi-Fi
Display & Operator Interface
- Annunciators: Zero, Gross/Net, Tare, Wi-Fi, WPAN
- Display: 5-inch LCD, 800 × 480 pixel, 500 NIT
- Keys/Buttons: Flat membrane panel with tactile feel; 18 buttons + five softkeys + power
Environmental
- Certified Temperature Range: 14°F to 104°F (-10°C to 40°C)
- Industrial Temperature Range: 14°F to 122°F (-10°C to 50°C)
Physical
- Dimensions (L × W × H): 10.0 × 4.0 × 8.6 in (254 × 102 × 218 mm)
- Weight: 6.25 lb (2.84 kg)
Enclosure / Rating / Material
- Ingress Rating: IP69K (IP66 with RJ45 option)
- Material: AISI 304 stainless steel
Warranty
- Warranty: Two-year limited
Approvals
- NTEP: 19-021, Class III/IIIL, 10,000d
- Measurement Canada: AM-6121C
- OIML: R76 2006 A NL1 19.56R3
- NOM
- EU Evaluation Certificate: TC11562
- Certifications: CE Listed, UKCA, cULus, NMI
The 682 Synergy Series indicator is built for tough washdown environments, featuring a 304 stainless steel enclosure and IP69 protection for high-pressure, high-temperature cleaning. A bright 5-inch color LCD with configurable softkeys makes operation fast and easy.
With advanced connectivity—including RS-232/RS-485, USB, Ethernet, fieldbus, Wi-Fi, and WPAN—the 682 integrates smoothly into systems and networks. A built-in web server supports remote monitoring and process control, and Truck In/Out mode streamlines vehicle scale transactions by storing truck ID, gross, tare, and net weights for printing or review.
