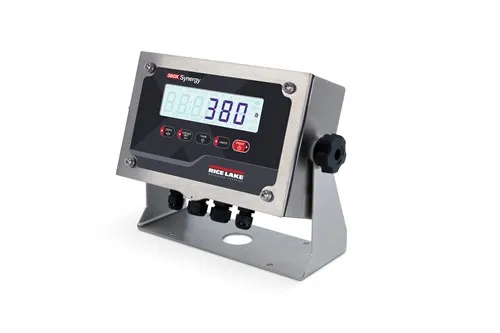

380X Synergy Series Washdown Digital Weight Indicator
The 380X Synergy Series Washdown Digital Weight Indicator is a compact, portable indicator designed for reliable weighing in washdown-ready environments. With a clear LCD display and battery-powered operation with an internal charger, the 380X is ideal for applications that need flexibility without sacrificing durability. Simple controls and built-in communication ports make it easy to operate, connect, and print the data you need—wherever the job takes place.
Key Features:
- LCD display for clear weight visibility
- Battery powered with internal charger for portable operation
- Push-button tare and keyed tare entry
- Two communication ports for peripheral connections
- Five tactile buttons for quick, simple operation
- Configurable print formats to output only key information
Available Options:
-Time/date
Power
- Battery: Lithium-ion
- Charger: 120 VAC internal
Power Consumption
- 25 W max with internal power
Battery Life
- 45 hours with one 350Ω load cell, no backlight
- 15 hours with four 350Ω load cells, no backlight
- 10 hours with eight 350Ω load cells, backlight
Load Cell / Excitation
- Excitation Voltage: 5 VDC
- Load Cell Capacity: 8 × 350Ω or 16 × 700Ω load cells
Analog Performance
- Analog Signal Input Range: -0.3 mV to +30 mV
- Common Mode Voltage: 0.7 V to 3.3 V
- Analog Signal Sensitivity: 1 µV/graduation recommended
A/D Sample Rate
- Gen 1: 5, 6, 10, 12, 20, 25, 40, 50, 80, 100 Hz (software selectable)
- Gen 2: 6, 8, 12, 15, 30, 50, 60, 100, 120 Hz (software selectable)
Resolution
- Internal: 8,000,000 counts
- Display: 100,000
System Linearity
- Within 0.01% full scale
Communication Ports
- RS-232: One full-duplex (three-wire)
- USB: One USB 2.0
Display & Operator Interface
- Annunciators: g, lb, t, tn, kg, oz, battery level, PT, LT, gross, zero, unstable, net
- Display: Six 1 in (25 mm) tall LCD digits
- Keys/Buttons: Five tactile buttons
Physical
- Dimensions (L × W × H): 11.58 × 4.53 × 8.57 in (294 × 115 × 218 mm)
- Weight: 6.25 lb (3.0 kg)
Environmental
- Certified Temperature Range: 14°F to 104°F (-10°C to 40°C)
- Operating Temperature Range: 14°F to 122°F (-10°C to 50°C)
Enclosure / Rating / Material
- Ingress Rating: IP69K
- Material: 304 stainless steel
Warranty
- Battery: One-year limited
- Indicator & Parts: Two-year limited
Compliance
- EMC Immunity: 10 V/m
Approvals
- NTEP: 21-051
- Measurement Canada: AM-6184
- Certifications: CE, UKCA, cULus, IEC
The 380X Synergy Series is a washdown-ready digital weight indicator built for demanding industrial environments. Its 304 stainless steel enclosure and IP69K rating provide exceptional protection for sensitive electronics, making it ideal for high-pressure, high-temperature washdown processes across a wide range of applications.
