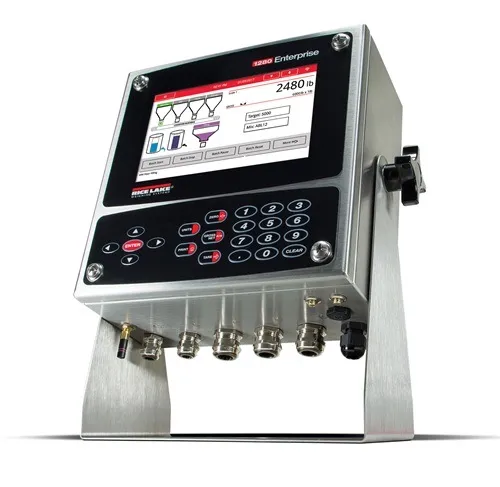

1280 Enterprise™ Series Programmable Digital Weight Indicator

This advanced weighing terminal features a customizable color touchscreen with graphical interface and tactile keypad for intuitive operation in demanding industrial environments. Designed for flexibility, it supports up to eight scales, multiple scale types, and five built-in applications including Truck In/Out, counting, and checkweighing.

With a built-in web server, multi-language support, and extensive connectivity options—including Ethernet, Wi-Fi Direct®, USB, and serial ports—the terminal enables remote access, data monitoring, and seamless system integration. Expandable I/O, customizable user programs, and powerful reporting tools make it a versatile solution for complex weighing and process control applications.

Key Features:

- Customizable Color Touchscreen with graphical user interface
- User-Defined Softkeys, Icons & Graphics for intuitive operation
- Tactile Keypad & On-Screen Keyboard with support for external keyboards
- Built-In Web Server for remote access, system integration, and data monitoring
- Multi-Language Operation and text entry
- Supports Up to 8 Scales across multiple scale types
- Five Built-In Applications: Truck In/Out, recipe storage, filling/dosing, counting, and checkweighing
- Custom User Programs with event-based functions and 150 built-in process functions
- Expandable via Smart Card Slots for additional scale channels, I/O, and protocol interfaces
- Advanced Data Visualization with line charts and bar graphs
- Comprehensive Connectivity: Ethernet TCP/IP, Wi-Fi Direct®, USB, email, and RS-232/RS-485
- Configurable Data Streams & Alibi Memory for secure data capture
- Extensive I/O Control: 100 setpoints, 18 setpoint types, and 8 digital I/O
- Multiple Enclosure Options: universal tilt stand, panel mount, and wall mount

Technical Specifications

Power

AC Input: 100–240 VAC, 50/60 Hz
DC Input: 11–30 VDC

Power Consumption

Maximum: 60 W

Load Cell Excitation

Voltage: 10 VDC (±5 VDC)
Capacity per A/D Card:
- 16 × 350 Ω load cells
- 32 × 700 Ω load cells

Analog Performance

Input Range: ±60 mV
Sensitivity:
- Minimum: 0.3 μV/graduation (7.5–120 Hz)
- Recommended: 1.0 μV/graduation
A/D Sample Rate: 7.5 to 960 Hz (software selectable)
Resolution:
- Internal: 8,000,000 counts
- Display: 1,000,000 divisions
System Linearity: ±0.01% of full scale

Digital I/O

Onboard: 8 digital I/O channels
Optional Expansion: 24-channel I/O boards

Communication Interfaces

Serial Ports (Ports 1 & 2):
- RS-232 (CTS/RTS), RS-422, RS-485
- Baud rate: 1,200 to 115,200
USB:
- Port 3: USB 2.0 Device (Micro)
- USB Host: (2) Type A ports, max 500 mA
Ethernet:
- Wired: 10/100 Auto-MDIX
- Wireless: 802.11 b/g/n (2.4 GHz)

System Architecture

Embedded Linux® Operating System
Memory:
- 8 GB eMMC (system use)
- 1 GB DDR3 RAM
- 460 MB onboard SQLite database storage
External Storage:
- microSD card support up to 32 GB (sold separately)
Filtering:
- Selectable three-stage filters
- Adaptive or damping modes

Display Options

7-inch Touchscreen:
- Resolution: 800 × 480
- Brightness: 500 or 1,000 nits
12-inch Touchscreen:
- Resolution: 1280 × 800
- Brightness: 1,500 nits

Keys & User Input

22-key membrane keypad with tactile buttons
On-screen keyboard for text and numeric entry
USB support for flash drives, keyboards, and printers

Environmental Conditions

Certified Temperature Range:
- 14 °F to 104 °F (−10 °C to 40 °C)
Operating Temperature Range:
- −4 °F to 131 °F (−20 °C to 55 °C)

Enclosure & Ratings

Material: Stainless steel 304
Ingress Protection:
- Universal: IP69K
- Wall Mount: IP66
- Panel Mount: IP69K / NEMA Type 4X & 12

Weight

Universal enclosure: 11 lb (4.9 kg)
Panel mount enclosure: 8 lb (3.6 kg)
Wall mount enclosure: 23 lb (10.4 kg)
Panel mount, 7" touch-only: 7 lb (3.1 kg)
Panel mount, 12" touch-only: 10 lb (4.5 kg)

Warranty

Two-year limited warranty

EMC Immunity

10 V/m

Approvals & Certifications

NTEP: 15-001, Class III / IIIL, 10,000 d
Measurement Canada: AM-5980C, Class III / III HD, 10,000 d
OIML:
- R76/2006-A-NL1-19.23, Class III / IIII, 10,000 d
- R61-1/2017, TC8596
Safety & Compliance:
- cULus Listed (Universal, Wall Mount)
- cULus Recognized (Panel Mount)
- CE Marked

This advanced weighing terminal combines a customizable color touchscreen, graphical user interface, and tactile keypad to deliver intuitive operation in demanding industrial environments. Built for flexibility, it supports up to eight scales, multiple scale types, and five built-in applications including Truck In/Out, counting, and checkweighing.

A built-in web server, multi-language support, and extensive connectivity—Ethernet, Wi-Fi Direct®, USB, and serial ports—enable remote access, real-time data monitoring, and seamless system integration. With expandable I/O, customizable user programs, and powerful reporting tools, this terminal is a versatile solution for complex weighing and process control applications.
