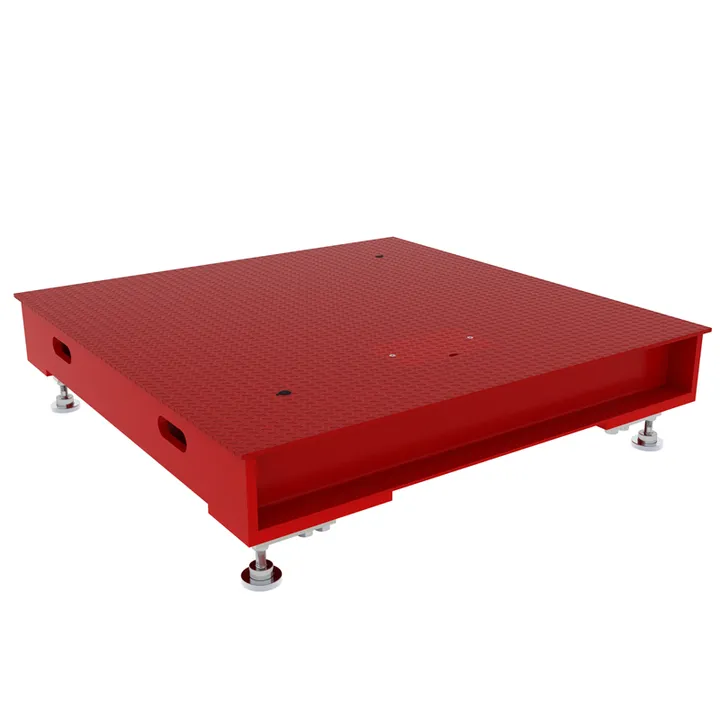

Workhorse Floor Scale
The B-TEK Workhorse is built for performance in the toughest industrial environments. With thick steel construction and superior engineering, it delivers unmatched durability, precision, and adaptability for heavy-duty weighing applications.
Key Features:
Heavy-Duty Construction: 6-inch flanged beams with durable tread plate decking
Rugged & Reliable: Built to perform in the harshest industrial conditions
Flexible Design: Customizable to meet specific application requirements
Precision Weighing: Delivers accurate, consistent readings for optimal efficiency
Technical Specifications – B-TEK Workhorse Platform Scale
Type: Above-ground or pit installation
NTEP COC: 18-061 (Trade Approved)
Capacities:
- 20,000 × 5 lb
- 30,000 × 10 lb
- 40,000 × 10 lb
End Load Capacity:
- 100% for 20K and 40K models
- 66% for 30K model
Scale Height: 9"–14" (varies by platform size and capacity)
Available Sizes: Standard 4' × 4' to 12' × 10' platforms; custom sizes available
Weighbridge: 3/8" carbon steel tread or smooth plate with WF-Beam substructure
Deck: Welded deck plate standard; bolted deck optional
Finish: Durable alkyd enamel paint system
Junction Box: Internally mounted NEMA 4X stainless-steel junction box with signal-trim summing board; top-access option available or standard with pit installations
Load Cells:
- (4) plated alloy steel, 350 Ω, 3.0 mV/V
- 20K model: (4) × 10,000 lb
- 30K model: (4) × 10,000 lb
- 40K model: (4) × 20,000 lb
- B-TEK LCMT mount assembly, bolted to WF-Beam substructure
Certifications: NTEP Certified – Trade Approved
The B-TEK Workhorse Platform Scale is built to perform in the toughest industrial weighing environments. Engineered to handle heavy, frequent material loads and highly concentrated weights like steel billets, the Workhorse delivers uncompromising strength and accuracy. Its wide flange beams and heavy tread plate decking create a rugged, long-lasting platform with NTEP-approved capacities from 20,000 to 40,000 lb. Designed for flexibility, it can be installed above ground or in a pit foundation—providing dependable performance for every weighment.
