Pancake Cargo Scale
Low-Profile, High-Performance Weighing for Demanding Cargo Operations
Whether you’re weighing freight from a ship, truck, or aircraft, the B-TEK Pancake Cargo Scale is built to handle your toughest weighing challenges. Designed for use with lift trucks and pallet jacks, this scale ensures a smooth, efficient transition from the floor to the weighing platform—keeping operations moving quickly and safely.
Key Features:
Low-Profile Design – With a 4.5" deck height, the Pancake Scale offers an accessible, ergonomic weighing surface that minimizes manual handling and maximizes efficiency.
360° Safety Yellow Ramps – Full-perimeter ramps provide easy access from any direction while improving visibility and safety during cargo loading and unloading.
Heavy-Duty Construction – The 10' x 10' scale platform and rugged materials are engineered to withstand heavy loads and the constant demands of airport and freight operations.
Comprehensive Kit – Includes 30" length ramps, ½” x 4½” wedge anchors, and 15 feet of B-TEK load cell cable—everything you need for fast, reliable setup.
Proven Industry Versatility – Trusted by leading freight companies and major U.S. airline cargo hubs, the B-TEK Pancake Scale delivers precision, durability, and performance across a range of industrial applications.
Pancake Cargo Scale Specifications
General
- Certificate of Conformance: Non-NTEP
- Type: Above ground
- Scale Capacity: 30,000 × 10 lb
- Available Sizes: 10’ × 10’ and 20’ × 10’
- Scale Height: 4.5"
Construction
- Weighbridge: ½” carbon steel tread plate with formed channel sub-structure
- End Load Capacity: 100% full-scale end load capacity
- Deck Features:
- Top-access junction box
- Leveling foot adjustment holes
- Threaded lifting eye bolt holes (⅝”-11 eyebolt)
- Top-access junction box
Ramps
- Design: 360° tread plate ramps
- Length: 30”
- Finish: Painted safety yellow for high visibility and safety
Components
- Paint System: Alkyd enamel industrial finish
- Load Cells: Plated alloy steel, 350 Ohms, 3.0 mV/V, FM Approved
- Leveling Foot: B-TEK stainless steel rigid foot — 3” diameter base with locator plate
- Junction Box: NEMA 4 fiberglass-reinforced plastic (FRP) with signal trim summing board
- Included: Load cell cable

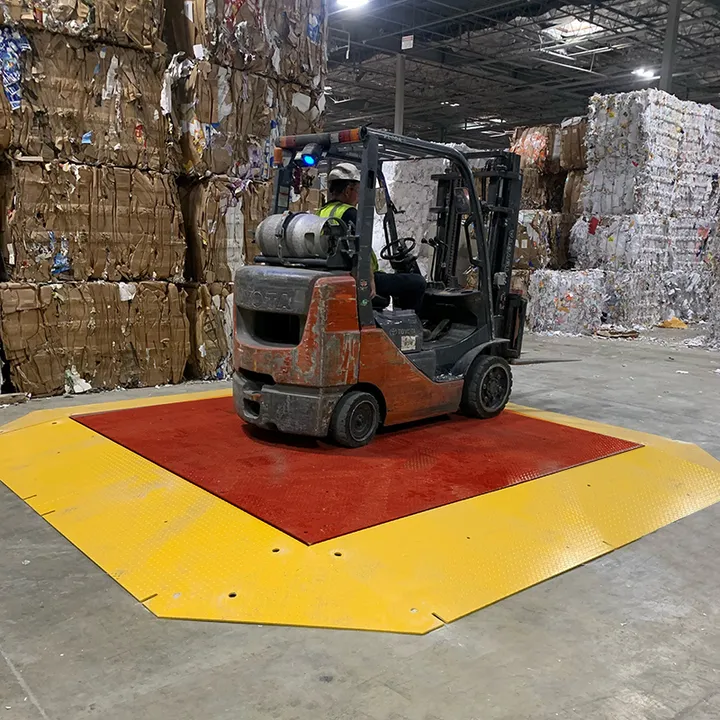

Designed for easy use with lift trucks and pallet jacks, the Pancake Scale’s ultra-low 4.5" deck height allows for a smooth transition from floor to scale, minimizing strain and improving workflow. Its 360° access ramps in safety yellow provide effortless entry from any direction, keeping operations safe and efficient.
Trusted by freight companies and major airline cargo hubs nationwide, this scale sets the standard for durability, accuracy, and reliability in cargo weighing.
Standard Features:
10' x 10' platform with 30,000 lb capacity
360° ramps in high-visibility safety yellow (30" length)
1/2" x 4-1/2" wedge anchors for secure installation
15 ft B-TEK load cell cable included
