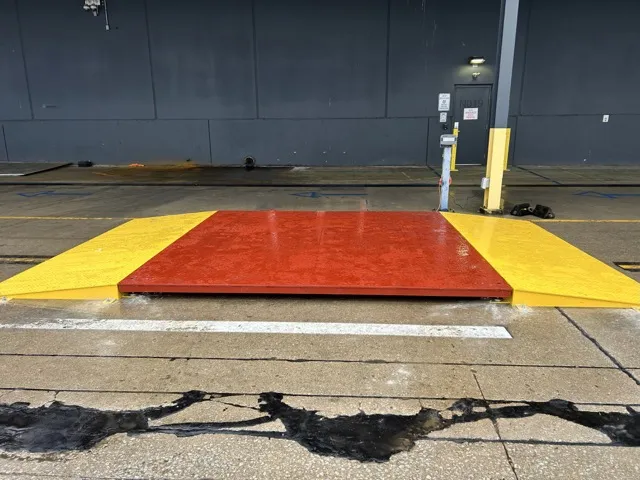

Dual Ramp Cargo Scale

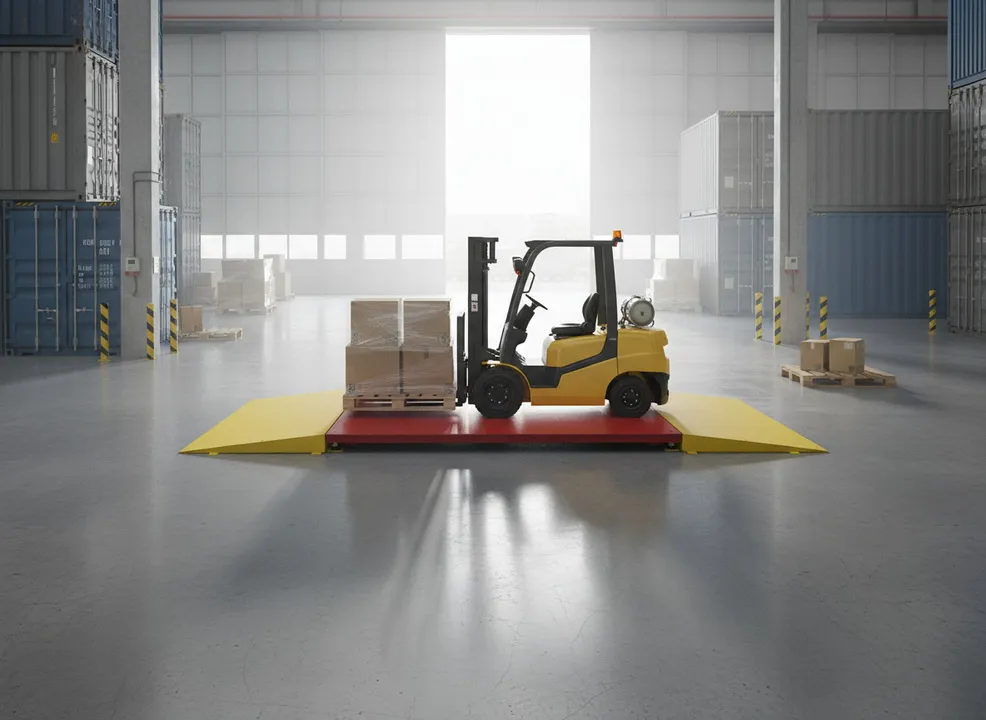

The B-TEK Dual Ramp Cargo Scale is designed for high-volume freight environments — from ships and trucks to aircraft cargo bays. Engineered for lift trucks and pallet jacks, this scale provides smooth transitions, accurate readings, and long-term reliability in demanding conditions.
Key Features
Low-Profile Design (5.5") – Allows easy access for lift trucks and pallet jacks, reducing handling time and improving workflow.
Safety-Yellow End Ramps – Enhance visibility and safety while clearly defining platform edges.
Heavy-Duty Construction – Built with durable components, including ½” x 4½” wedge anchors, for lasting performance under heavy use.
Industry Proven – Trusted by freight companies and major U.S. airline cargo hubs for accuracy and dependability.
Ideal for: airport cargo facilities, logistics centers, and industrial freight operations.
General
- Certificate of Conformance: Non-NTEP
- Type: Above ground with dual ramps
- Scale Capacity: 30,000 × 10 lb
- Scale Height: 5.5"
- Available Sizes: 10’ × 10’ and 20’ × 10’
Construction
- Weighbridge: ½” carbon steel tread plate with formed channel sub-structure
- End Load Capacity: 100% full-scale end load capacity
- Deck Features:
- Top-access junction box
- Leveling foot adjustment holes
- Threaded lifting eyebolt holes (⅝”-11 eyebolt)
- Top-access junction box
- Ramps: Dual 4' tread plate ramps, painted safety yellow
- Paint System: Alkyd enamel industrial coating
Components
- Load Cells: Plated alloy steel, 350 Ohms, 3.0 mV/V, FM Approved
- Leveling Foot: B-TEK stainless steel rigid foot with 3" diameter base
- Junction Box: NEMA 4 fiberglass-reinforced plastic (FRP) with signal trim summing board
- Includes:
- B-TEK load cell cable (scale-to-indicator connection)
- ½” × 4¼” wedge anchors for scale and ramps
- B-TEK load cell cable (scale-to-indicator connection)
When accuracy and durability matter most, S&J Carolina Scale delivers industry-leading solutions with B-TEK’s Dual Ramp Cargo Scale. Designed to handle the demanding needs of weighing goods from ships, trucks, and aircraft, this scale integrates seamlessly with lift trucks and pallet jacks, ensuring a smooth transition from floor to platform.
Trusted by major U.S. airlines and freight companies, B-TEK Cargo Scales set the standard for efficiency and accuracy in airport and logistics operations. And when you partner with S&J Carolina Scale, you get more than equipment — you get a dedicated team that provides expert installation, calibration, and ongoing support to keep your operation moving.
