Tracer® AV2 Baggage Weighing Instrumentation

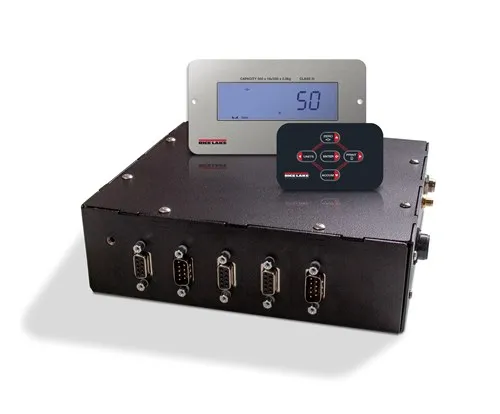

Tracer AV2 Indicator
The Tracer AV2 provides instant alerts when preset weight limits are exceeded, featuring a durable stainless-steel LCD display and simple five-button keypad. With multiple connectivity options—including serial, Ethernet, Wi-Fi, and Bluetooth®—it easily integrates into any baggage handling system.
Key Features:
Alerts operator when weight limits are exceeded
Rugged stainless-steel enclosure with LCD display
Five-button keypad for simple operation
Ethernet, Wi-Fi, Bluetooth®, and serial connectivity
Compatible with all Rice Lake baggage scales, including custom designs
Tracer AV2 Specifications
Power
- Input: 115–230 VAC, 50/60 Hz to CPU module
- Power Consumption: 6 W
Load Cell Excitation
- 5 VDC, supports up to 8 × 350 Ω load cells
Analog Input
- Signal Range: –0.5 mV/V to 4.5 mV/V
- Sensitivity: 1 µV per graduation (recommended)
A/D Performance
- Sample Rate: 6.25 to 120 Hz (software selectable)
- Internal Resolution: 8,000,000 counts
- Display Resolution: 1,000,000 counts
- Linearity: Within 0.01% full scale
Communication
- Ethernet TCP/IP
- USB Device
Display & Interface
- Stainless steel, panel-mounted LCD display
- Seven-digit, 0.8 in (20 mm) tall digits
- Annunciators: lb/kg
- Keys: Zero, Units, Accum, Print, Enter
Environmental
- Operating Temperature: 14 °F to 104 °F (–10 °C to 40 °C)
Dimensions
- Panel Mount Display: 7.5 × 4.0 × 1.49 in (19.05 × 10.16 × 3.79 cm)
- External Mount Display: 7.5 × 3.9 × 1.44 in (19.05 × 9.91 × 3.66 cm)
- Panel Mount Keypad: 4.0 × 2.5 × 2.1 in (10.16 × 6.35 × 5.33 cm)
- CPU Enclosure:
- Without Feet: 7.5 × 7.0 × 2.25 in
- With Feet: 11.13 × 7.0 × 3.06 in
- Without Feet: 7.5 × 7.0 × 2.25 in
Physical
- Weight: 5.25 lb
Compliance & Warranty
- Warranty: Two-year limited
- Approvals:
- NTEP 21-015, Class III/IIIL, 10,000d
- Measurement Canada AM-6168C
- cULus, IEC Certified
- NTEP 21-015, Class III/IIIL, 10,000d
Tracer AV2 Indicator
The Tracer AV2 provides instant alerts on the operator display when preset weight limits are exceeded, ensuring accuracy and efficiency at every check-in point. Built to last, it features a rugged stainless-steel enclosure, bright LCD display, and intuitive five-button keypad for easy operation in demanding airport environments.
Versatile Connectivity
Equipped with serial, Ethernet, Wi-Fi, and Bluetooth® options, the Tracer AV2 seamlessly transmits weight data to a wide range of peripheral devices and systems, enhancing communication and workflow flexibility.
Complete Weighing Solution
Rice Lake offers a full line of baggage scales designed to precisely weigh bags of any size and integrate effortlessly into diverse counter configurations. All Rice Lake baggage scales pair seamlessly with the Tracer AV2—whether standard or custom-built to fit existing airport layouts.
