Jack Weigh EZ RFX® Kit for Aircraft Weighing
Accurate. Affordable. Wireless.

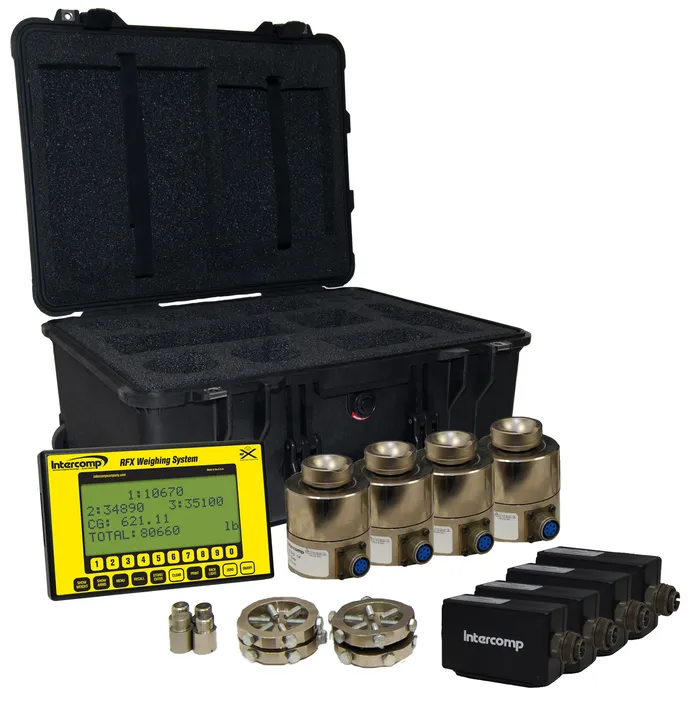

The Intercomp Jack Weigh EZ RFX® Kit, available through S&J Carolina Scale, provides a cost-effective, portable weighing solution for helicopters, business jets, military, and narrow-body aircraft.
Featuring RFX® Wireless Weighing Technology, the system communicates directly with Intercomp’s Handheld RFX® Indicator for complete control and real-time data display.
Each kit uses Digital Output Load Cells (DOLCs) that convert weight readings directly at the source for superior accuracy. Components are fully interchangeable—simply replace a load cell, radio, or indicator without re-calibration or setup.
Load Cell Specifications
- Capacities: 5,000 lb (2,500 kg) • 10,000 lb (5,000 kg) • 25,000 lb (12,500 kg) per load cell
- Graduation: User selectable
- Accuracy: ±0.1% of reading or ±0.02% of load cell capacity — whichever is greater
EZ RFX™ Indicator Specifications
Controls
- On/Off, Zero, Backlight, Print, Clear, Store/Enter, Recall, Menu, Show Arms, Show Weight, Numeric Keypad
Display
- LCD with 0.5" (12.7 mm) high digits per line
Electrical
- Voltage: 6–15 VDC or 100–240 VAC power supply/charger
- Batteries: Four AA NiMH rechargeable or four AA alkaline batteries
- Battery Life: Up to 38 hours (alkaline)
RFX™ Wireless Radio Specifications
- Frequency: ISM 2.4 GHz, 802.15.4 DSSS
- License Requirements: None — pre-approved for US/FCC, CAN/IC, and EUR/CE
- Range: 200 ft (60 m) indoors; up to 300 ft (90 m) line of sight
- Batteries: Four AA NiMH rechargeable or four AA alkaline batteries
- Battery Life: Up to 36 hours (alkaline)
Compact. Accurate. Ready for Any Aircraft.
The Intercomp Jack Weigh EZ RFX® Kit, available through S&J Carolina Scale, is a lightweight, portable weighing solution designed for a wide range of aircraft — from helicopters to business jets and narrow-body planes. Built for precision and convenience, this system allows operators to perform accurate, in-house aircraft weighing without the cost of outsourcing.
Key Features
- High Accuracy: ±0.1% of reading for precise, repeatable results.
- Interchangeable Adapters: Designed to fit and weigh all aircraft types.
- Flexible Capacity Range: Available from 5,000 lb (2,500 kg) to 25,000 lb (12,000 kg) per load cell.
- Low-Profile Design: Fits easily within most jack-to-jack point envelopes.
- RFX® Wireless Indicator: Provides real-time control and data display in a handheld format.
- Single-Person Portability: Lightweight case and kit make setup, transport, and operation fast and simple.
