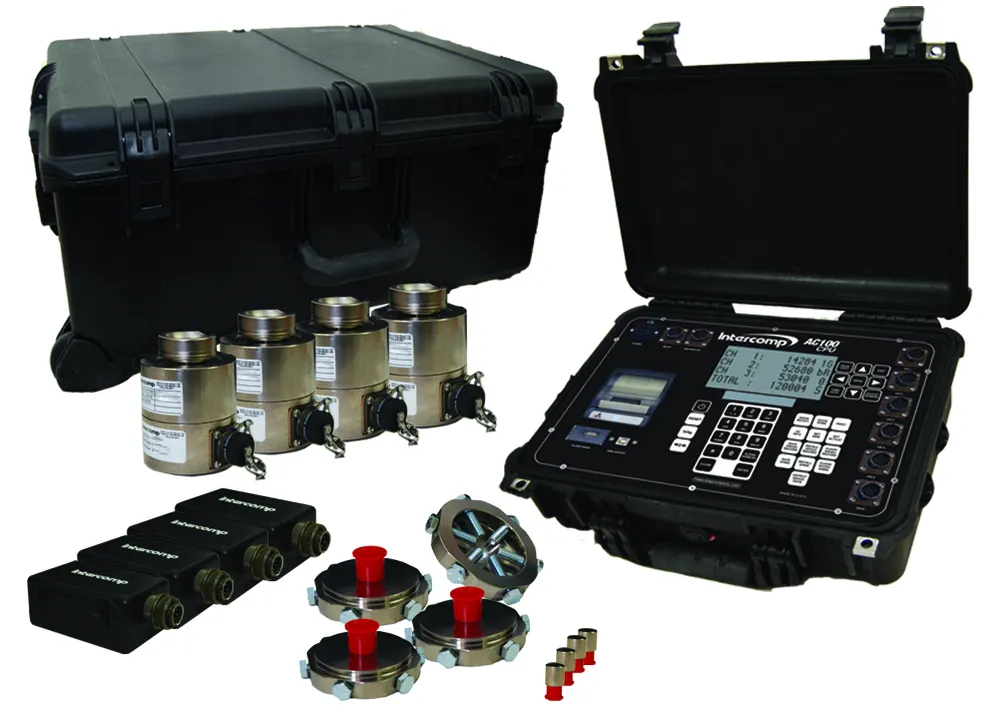

Jack Weigh AC100™ Kit for Aircraft Weighing
The Intercomp Jack Weigh AC100™ Kit, available through S&J Carolina Scale, offers a complete aircraft weighing solution for everything from helicopters to wide-body commercial and military aircraft. Each kit is compact, easy to transport, and comes standard with the AC100™ CPU for accurate control and data display.
Featuring RFX® Wireless Weighing Technology and Digital Output Load Cells (DOLCs), the AC100™ delivers fast, reliable readings without complex setup. Each load cell operates independently, allowing quick part replacement—no re-calibration required.
For facilities with wireless restrictions, radios can be disabled or replaced with hard-wired options to meet regulatory requirements.
Specifications
Load Cell Specifications
- Capacities: 5,000 lb (2,500 kg) • 10,000 lb (5,000 kg) • 25,000 lb (12,500 kg) • 50,000 lb (25,000 kg) • 100,000 lb (50,000 kg) per load cell
- Graduation: User selectable
- Accuracy: ±0.1% of reading or ±0.02% of load cell capacity — whichever is greater
AC100™ CPU Specifications
Controls
- Keys: 40-key control panel including On/Off, Reset, Zero, Clear, Enter, kg/lb, numeric keypad, and function keys for Show Weight, Print, Save/Recall Records, and more
- Display: 5.7" (145 mm) graphic LCD with backlight
Electrical
- Power Supply: 100–240 VAC, 50–60 Hz (universal plug kit included)
- Battery Type: Six D-cell alkaline or NiMH rechargeable batteries with external access
- Battery Life: 40–200 hours, depending on system configuration, printer, and backlight use
RFX™ Wireless Radio Specifications
- Frequency: ISM 2.4 GHz, 802.15.4 DSSS
- License Requirements: None – pre-approved for US/FCC, CAN/IC, and EUR/CE use
- Range: 200 ft (60 m) indoors, up to 300 ft (90 m) line of sight
- Battery Type: Four AA NiMH rechargeable or alkaline batteries
- Battery Life: Up to 36 hours (alkaline)
Key Features
- Versatile Aircraft Compatibility – Designed to weigh helicopters, commercial and military jets, and wide-body aircraft with precision.
- Compact & Portable – Lightweight design allows for quick transport, setup, and operation in hangars or on the flight line.
- Integrated AC100™ CPU – Provides centralized control with clear display options and intuitive operation.
- RFX® Wireless Weighing Technology – Enables seamless communication between load cells and CPU for efficient, cable-free operation.
- Digital Output Load Cells (DOLCs) – Perform analog-to-digital conversion at the source for greater accuracy and reliability.
- Plug-and-Play Maintenance – Interchangeable load cells and indicators eliminate downtime—no re-calibration required after part replacement.
- Flexible Connectivity – Wireless radios can be disabled or replaced with hard-wired alternatives to meet regulatory requirements.
